Hot sale ! 100Kva 50KW stirling engine solar generator kit dc to ac power / 5000 watt 15000 watt 6000w solar generator 3000w from Qingdao allrun new energy co., ltd ARXT10000
1. We produce different size solar system , on grid , of grid and hybrid , from 500W to 50MW
2. Ww have more than 18 years in this area producing and exporting , we have our own R&d dept.
3.The products have long working time and good warranty
Solar Cell Module | Max power | 10240 W(320W/PC *32PCS) | ||||
Converting efficiency | ≥ 22% crystalline silicon | |||||
Electrical data | Open circuit voltage | 46.53V | Max voltage | 38.6V | ||
Short circuit current | 9.2A | Max current | 8.29A | |||
Type and Size | 320W/PC | Module size | 19560×990×40 | |||
Battery Pack | Rated capacity | 250AH | Combined mode | 12/250Ah (8pcs in series) | ||
Rated voltage | 96V | |||||
Battery type | Maintenance-free GELbatteries | Depth of discharge | ≤70% | |||
Ambient temperature | -30°C~+80°C | Weight | 456 Kg | |||
Lifetime | 20 years | |||||
Inverter and controller | Model | 10KW | ||||
Size | 500 × 600 × 700 | |||||
Rated AC output power | 10KW | |||||
Grid voltage range | 330~460/170~230 | |||||
Rated Grid frequency | 50Hz / 60Hz | |||||
Reference to Weight | 30kg | |||||
MPPT range | 200~400@306 | |||||
Ambient temperature of using | -20°C~+50°C | |||||
Max Output | AC | Pure electricity wave | 10KW | Rated output(100%) | AC | Pure electricity wave | 10KW |
Power ability for 50% loads | Available Power for a sunny day’s charge | 6—8 hours | |||||
Available power for full battery | 72 hours | ||||||
Remark:
1) We can design the solar panel capacity according to customer’s requests.
2) Total system price: to be provided by email upon receiving client’s specification
inquiry. We accept OEM.
3) Differet size to choose
components pics for reference

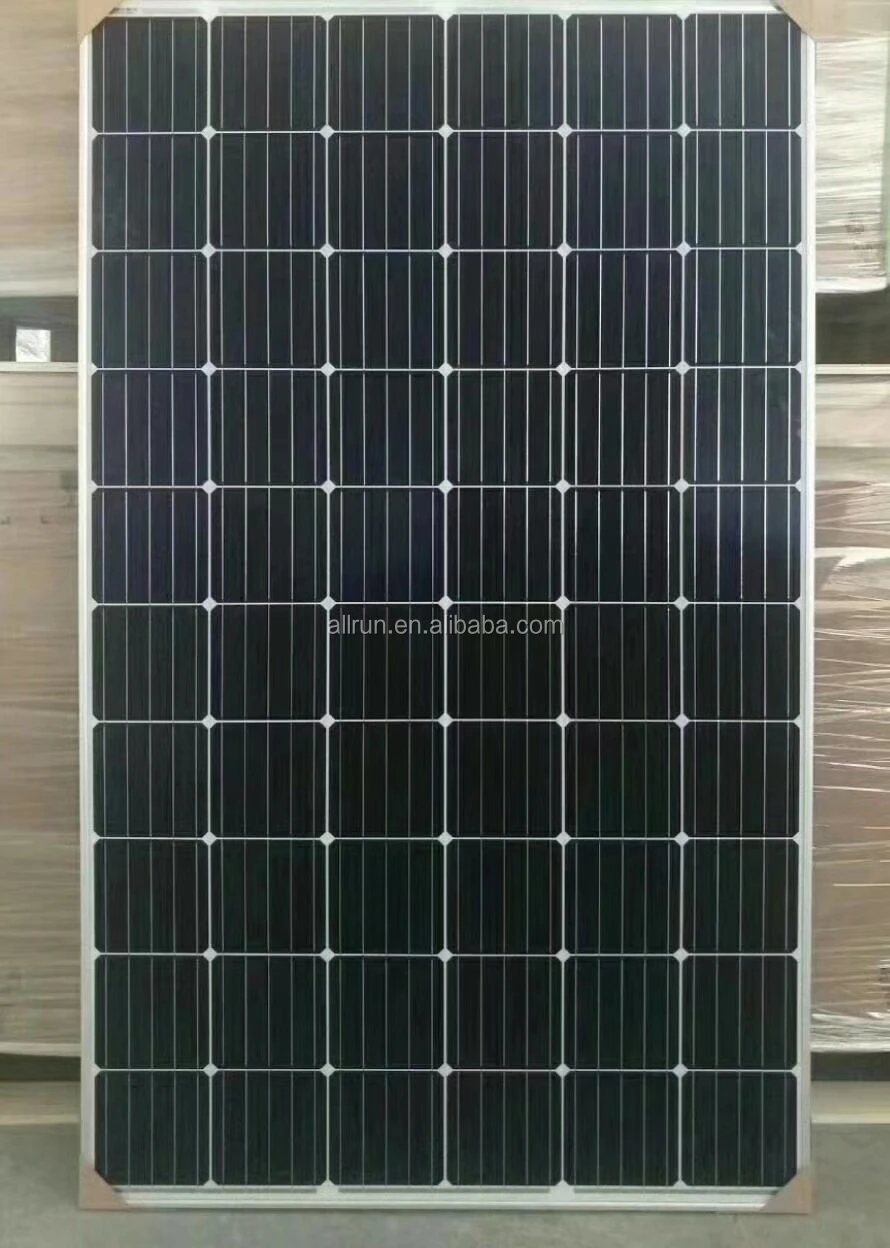

A: solar panel( can adjust to mono and poly)
B: mounting bracktes( different style , on roof, on ground and so on)
