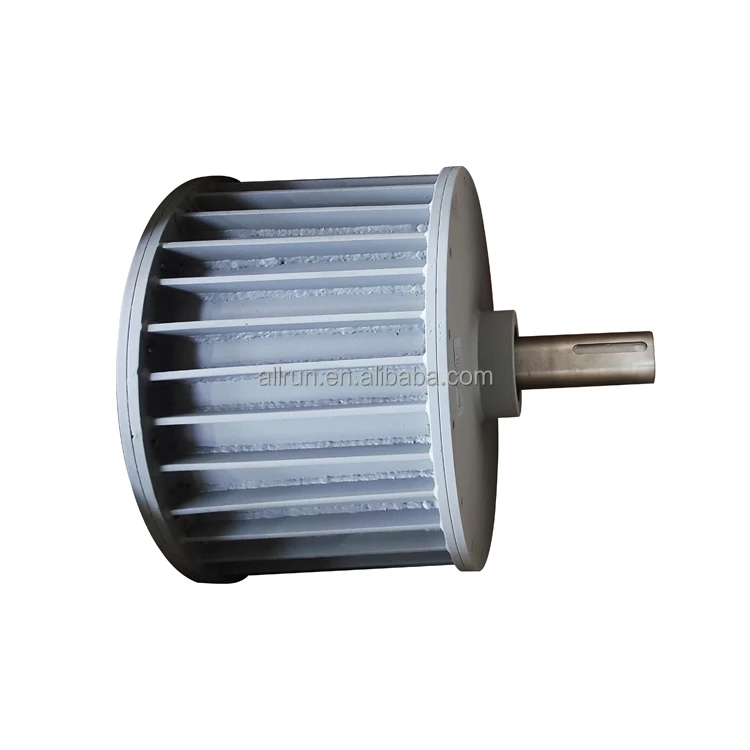

Model | ARPMG |
Rated Power(w) | 15kw |
Max Power(w) | 20kw |
Rated Voltage(v) | 220V/380V/420V( can adjust for your requirement) |
Rated rotated speed(r/m) | 220 RPM ( can adjust to customersize ) |
Top net weight(kg) | 250kg(Upon the RPM and power) |
Output Current | AC |
Rated Torque(N*M) | 651 Nm(Upon RPM) |
Generator | 3 phase permanent magnet synchronous generator |
Insulation Class | F |
Service Life | More Than 25 years |
Bearing | HRB or SKF for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
A: Grid TIE System
B: Off Grid System
Allrun Company can provide customized generators according to customers' requirements for voltage, speed, power, frequency, etc.
RATED POWER | RATED SPEED | RATED VOLTAGE | FREQUENCY |
0.2KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
0.3KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
10KW | 20rpm~1500rpm | 120V~690Vac | 10Hz~60Hz |
15KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
20KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
25KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
30KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
50KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
80KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
100KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
150KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
200KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
250KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
300KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
500KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
700KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
800KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
1MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
2MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
3MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
4MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
5MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
